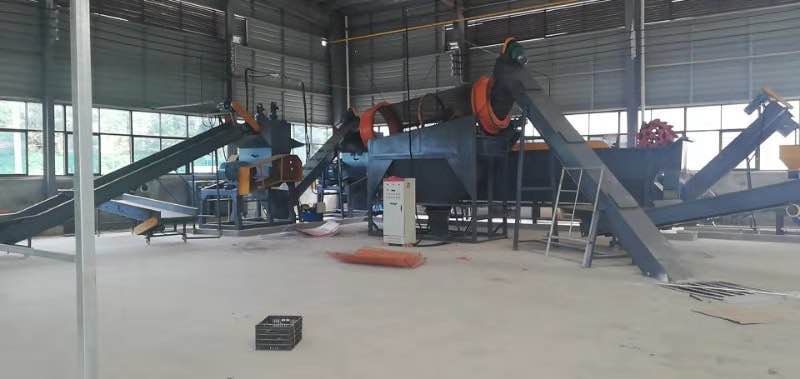

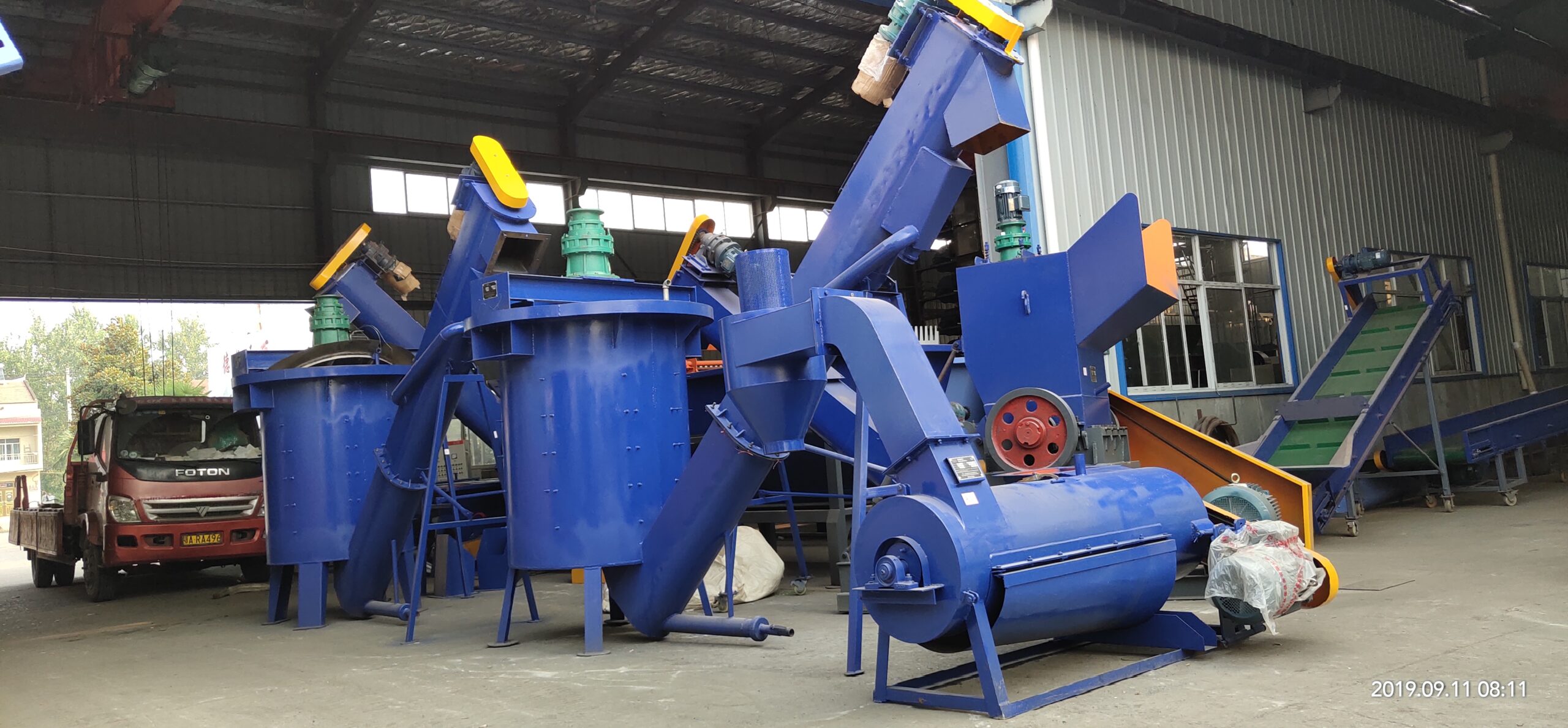

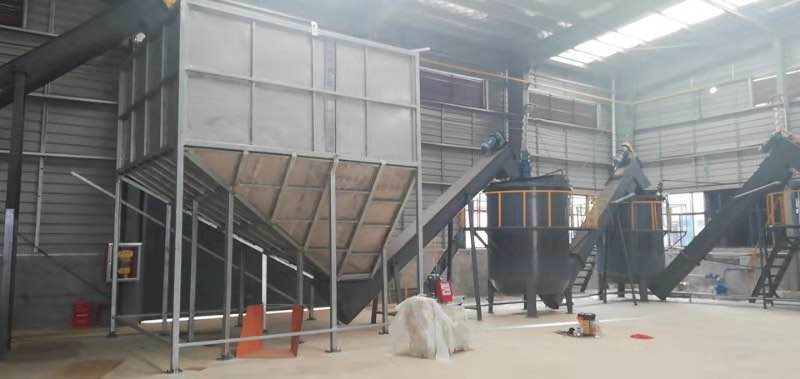

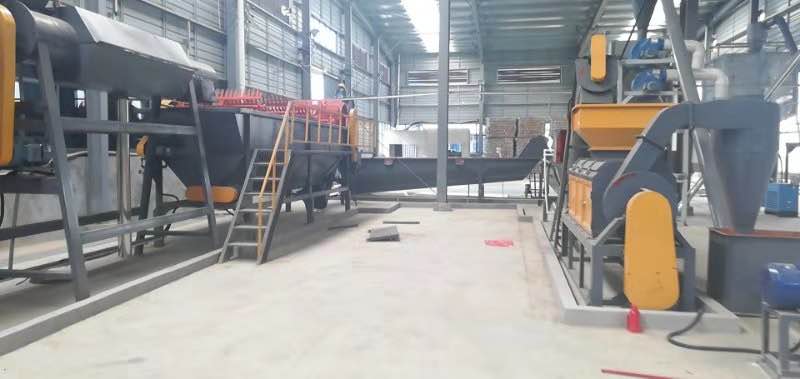

PET Bottle Plastic Recycling Machine
Application
Recycle baled or de baled scrap PET bottles, PET Sheet, PET tray, PET roll, etc. Hot washing them into clean PET flakes.
Main Process
Debale→Label Removing→ Crushing→ Cold Washing→ Hot Washing→ Rinsing Washing→ Drying.
Final Products Market
Hot washed PET flakes can make long staple fiber directly, and cold washed PET flakes can make PET packing tape.
Estimated Plant Parameters
| Capacity (kg/h) | Power Installed (kw) | Water Supply （m³/h） | Required Area (㎡) | Man Power |
| 500 | 220 | 1 | 400 | 8 |
| 1000 | 500 | 3 | 750 | 10 |
| 2000 | 700 | 5 | 1000 | 12 |
PET Flake Quality Reference Table
| Moisture Content | ＜0.9％ | Label | ＜20ppm |
| PVC | ＜50ppm | Variegated tablets | ＜30ppm |
| Glue | ＜10ppm | PH | Neutral |
| PP/PE | ＜20ppm | Total impurity | ＜100ppm |
| Metal | ＜20ppm | Fake Size | 12mm,14mm,16mm or according request |
